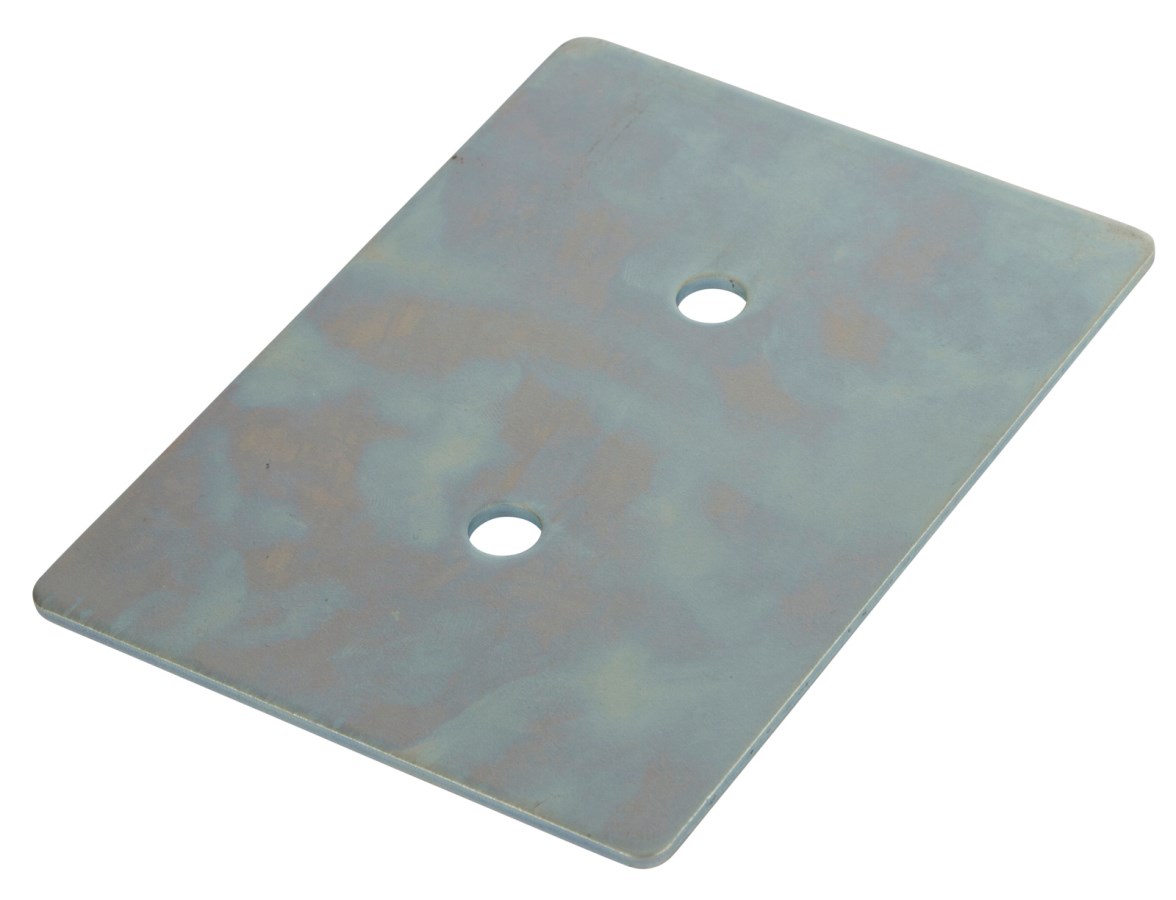

Counterplate for Lash Trays

  • for securing loads with lashing eyelets on trailers, lorries or boats

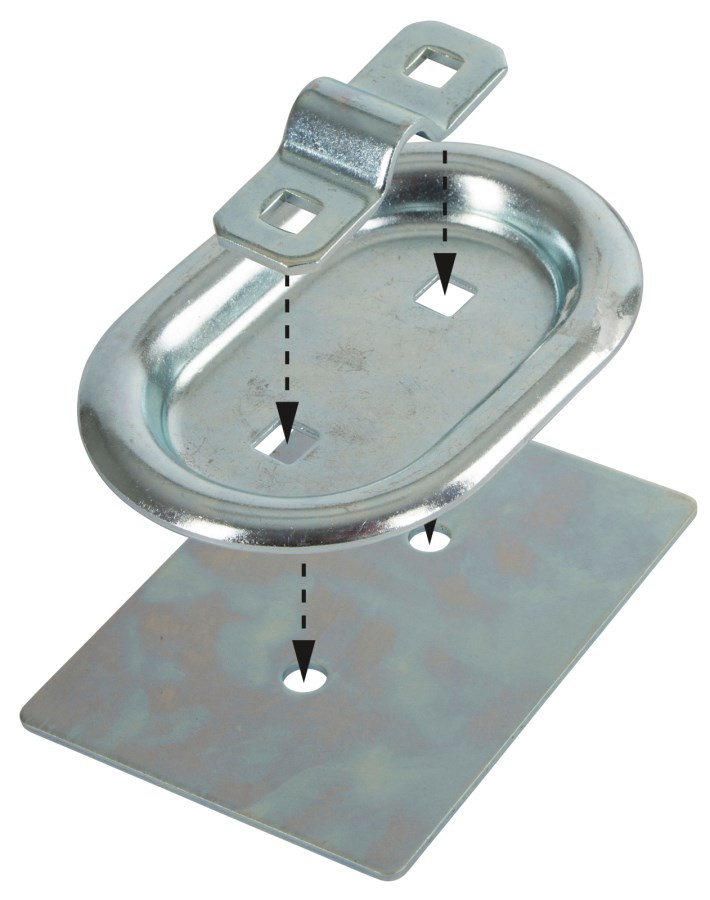

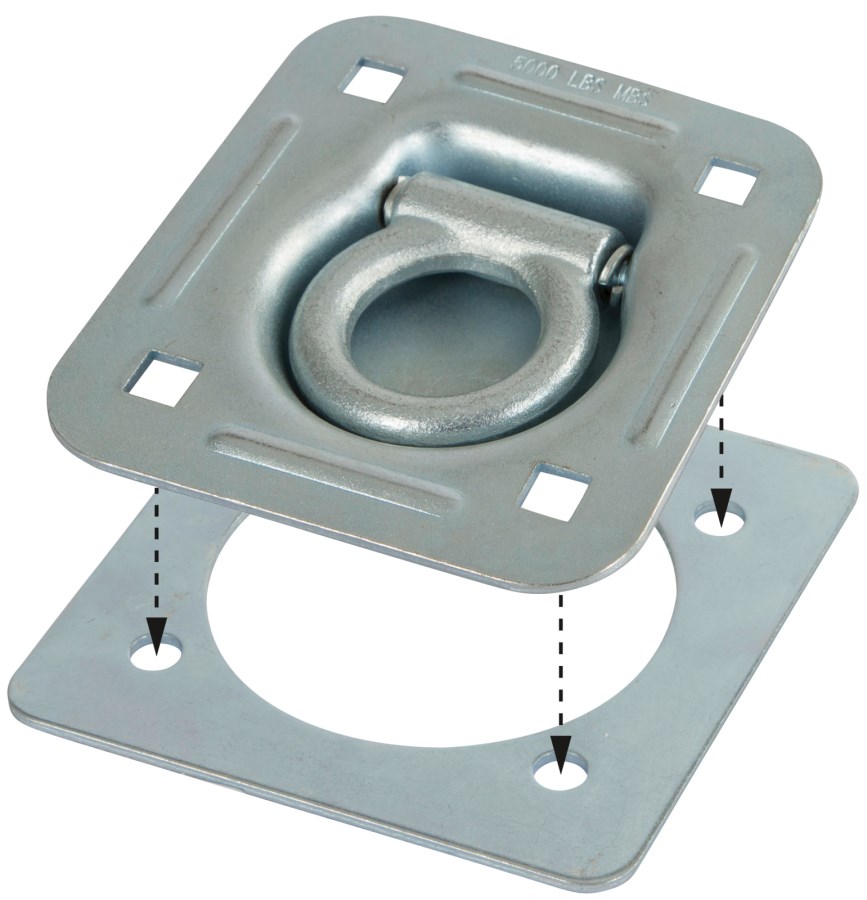

  • can be mounted on the back of floor panels, screen printing plates or dropside attachments to prevent tear-out
  • galvanised, corrosion-resistant design
  • Counter plates facilitate the installation of lashing points and ensure a high load-bearing capacity of the lashing points on commercial vehicles
  • Material: steel, galvanised
Items
Ref. no.LengthWidthMaterial thicknesscan be used formax. breaking loadpermissible direct tensile force (LC)Number of holesMOQPieces / unitPU

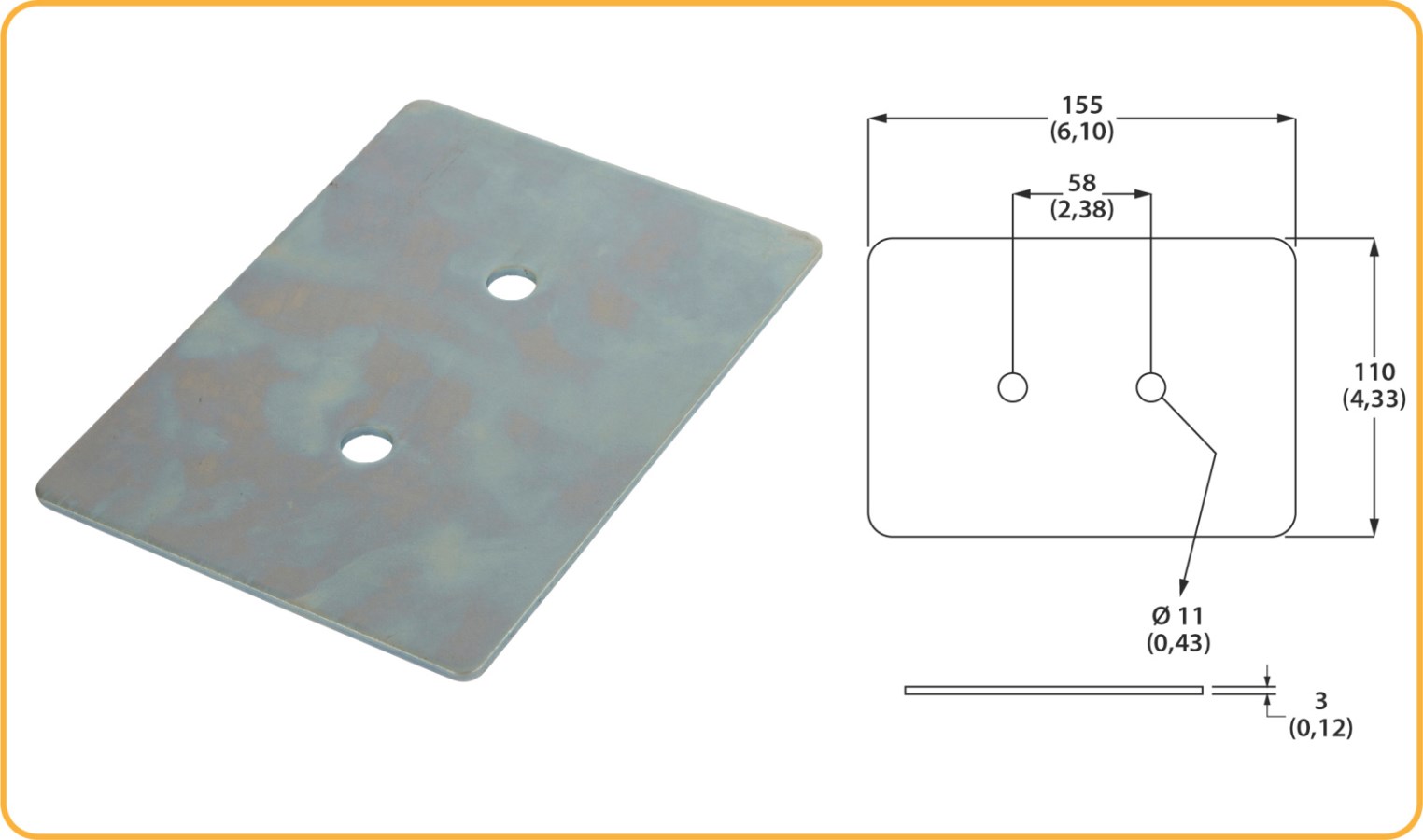

37607155 mm110 mm3 mm37601, 376042270 kg1135 kg21/40

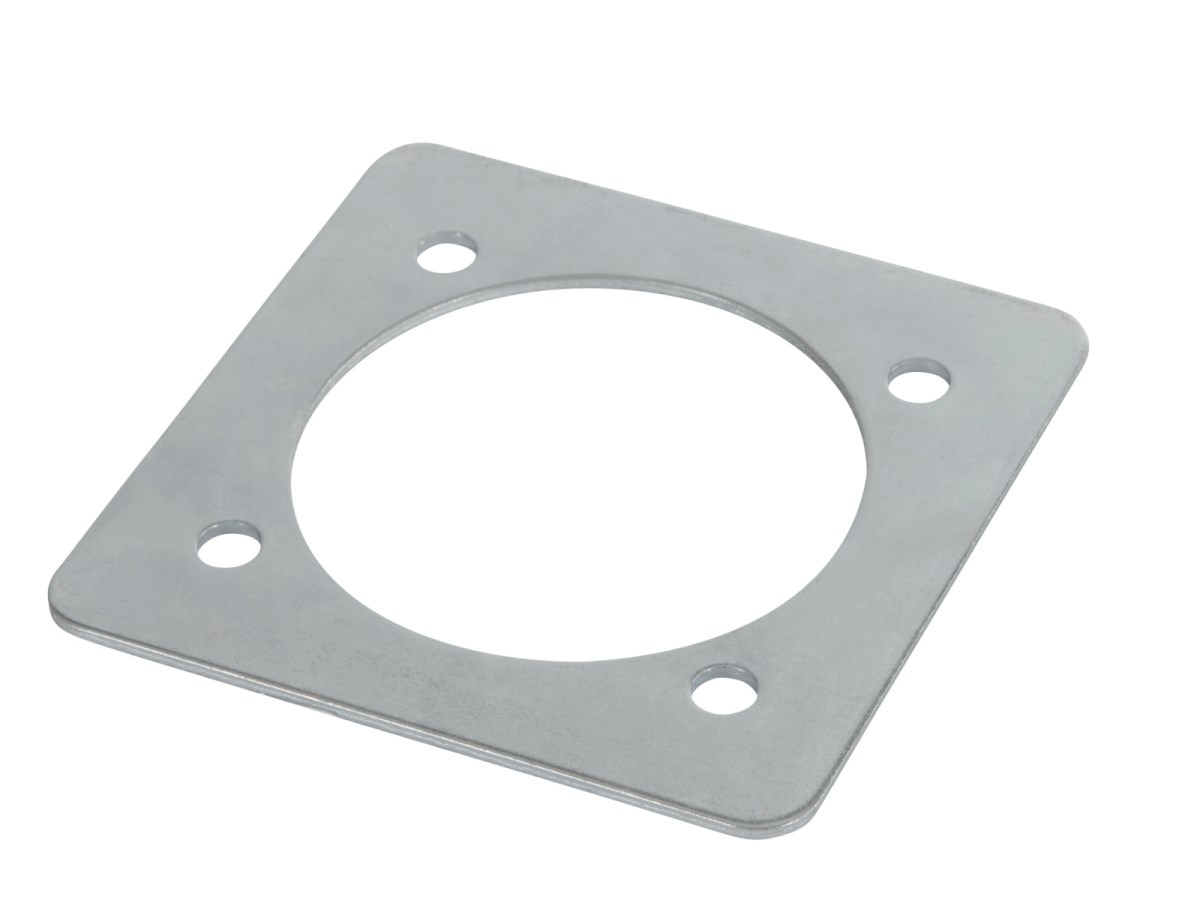

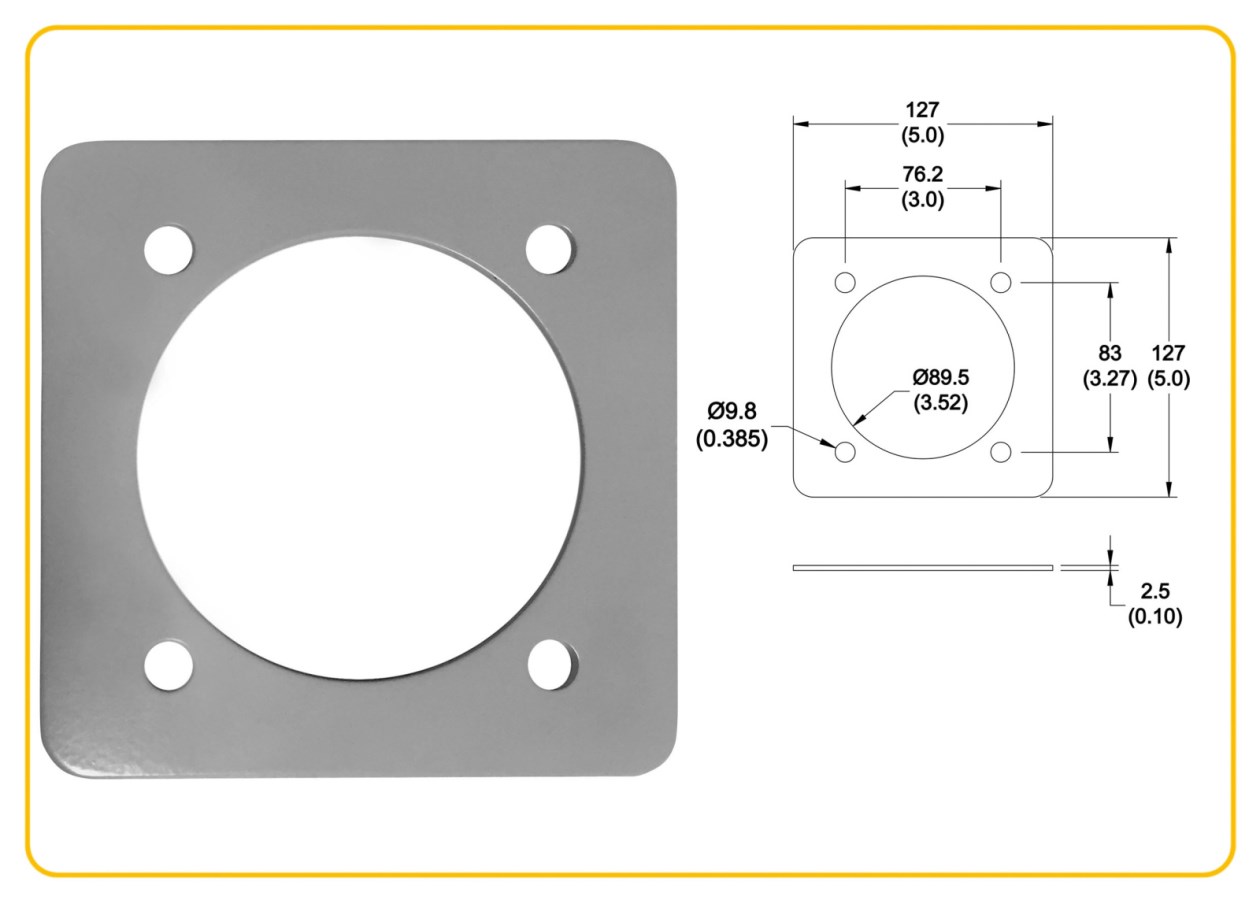

37608127 mm127 mm3 mm376032270 kg1135 kg41/80

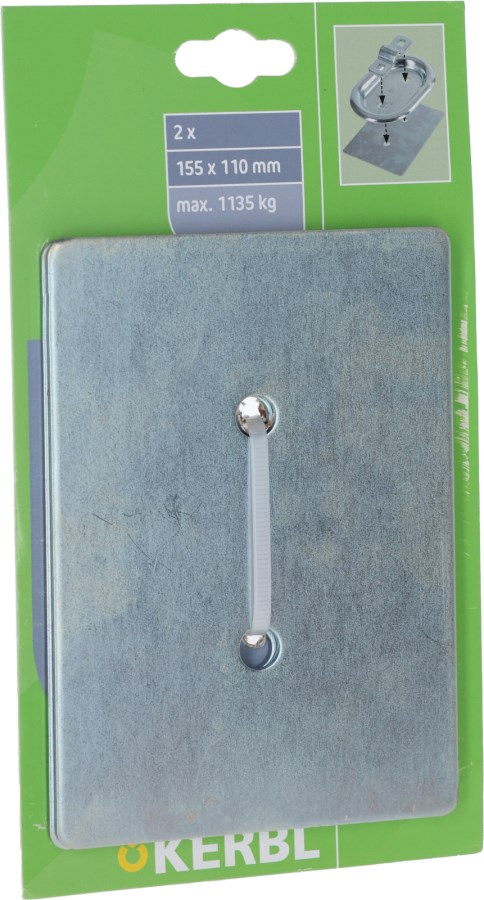

37607/2155 mm110 mm3 mm37601, 376042270 kg1135 kg21 pack2 / pack1/20
37608/2127 mm127 mm3 mm376032270 kg1135 kg41 pack2 / pack1/45
