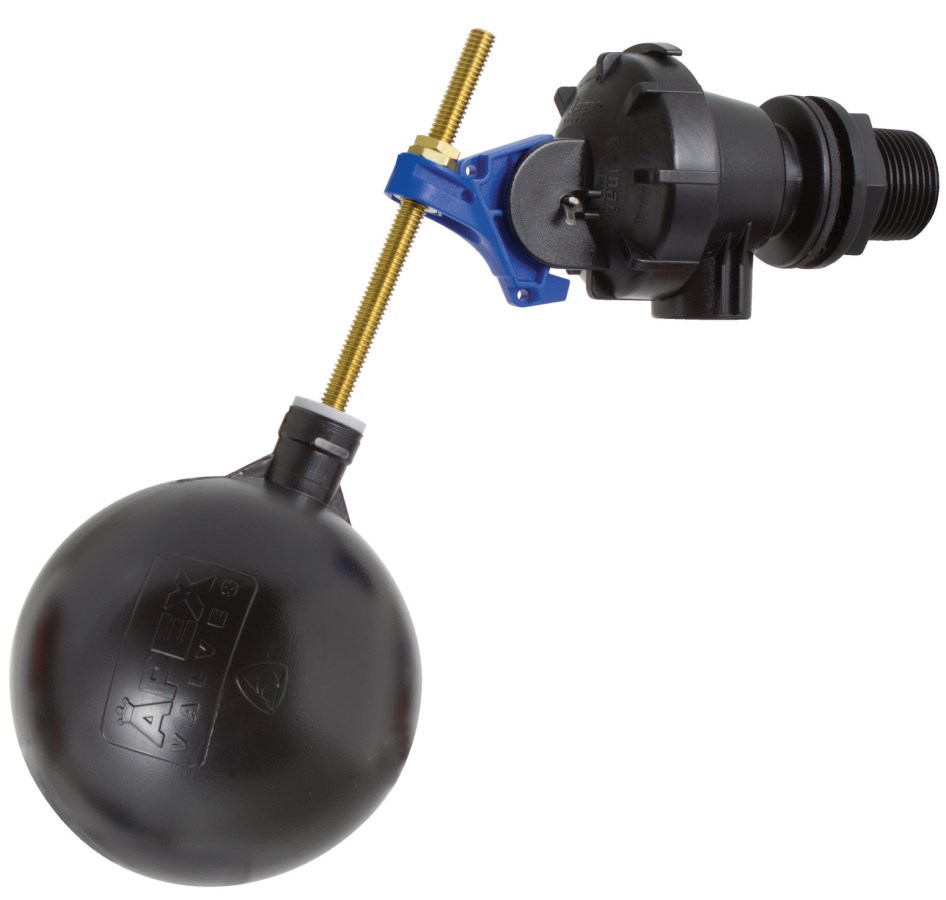

Floating valve XtraFlo Top Entry

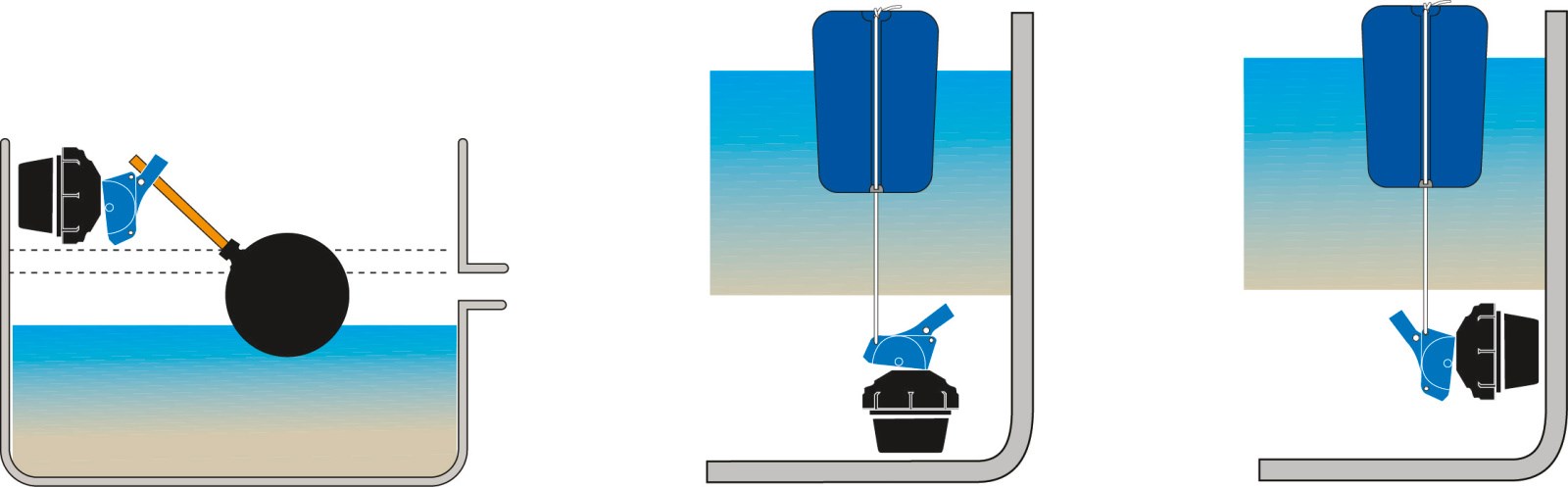

  • universal float valve
  • for small installation spaces
  • Long service life
  • high throughflow values
  • filling capacity: 310 l/min at 5 bar water pressure, 250 l/min at 3 bar water pressure
  • UV and corrosion-resistant
  • Art. 223440: water level can be changed by 4 cm thanks to height-adjustable float arm
  • protects the water pump, since the valve is either fully open or closed
  • The repair set contains membranes, valve plates, nozzles, levers and pilot pins, springs and splints
  • Suitable for: High pressure
Items
Ref. no.Water connectionPU
2234403/4"1/10/201/10/20
Accessories
Ref. no.Descriptionsuitable forPU
223442Float Ball223440, 2234411/36
223443Repair Set XtraFlo2234401/10
223444Seal 1/50
