Gutter heating cable

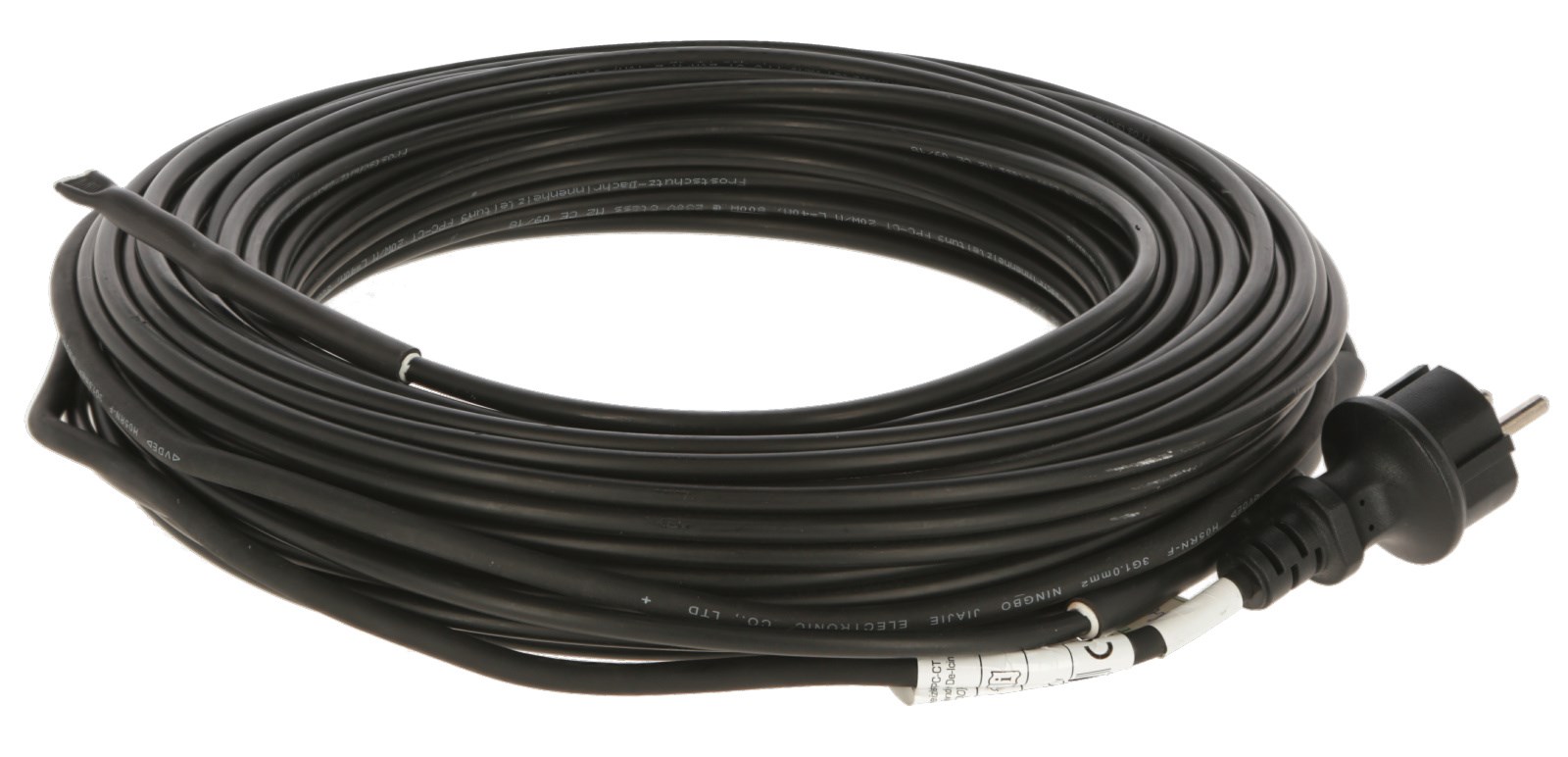

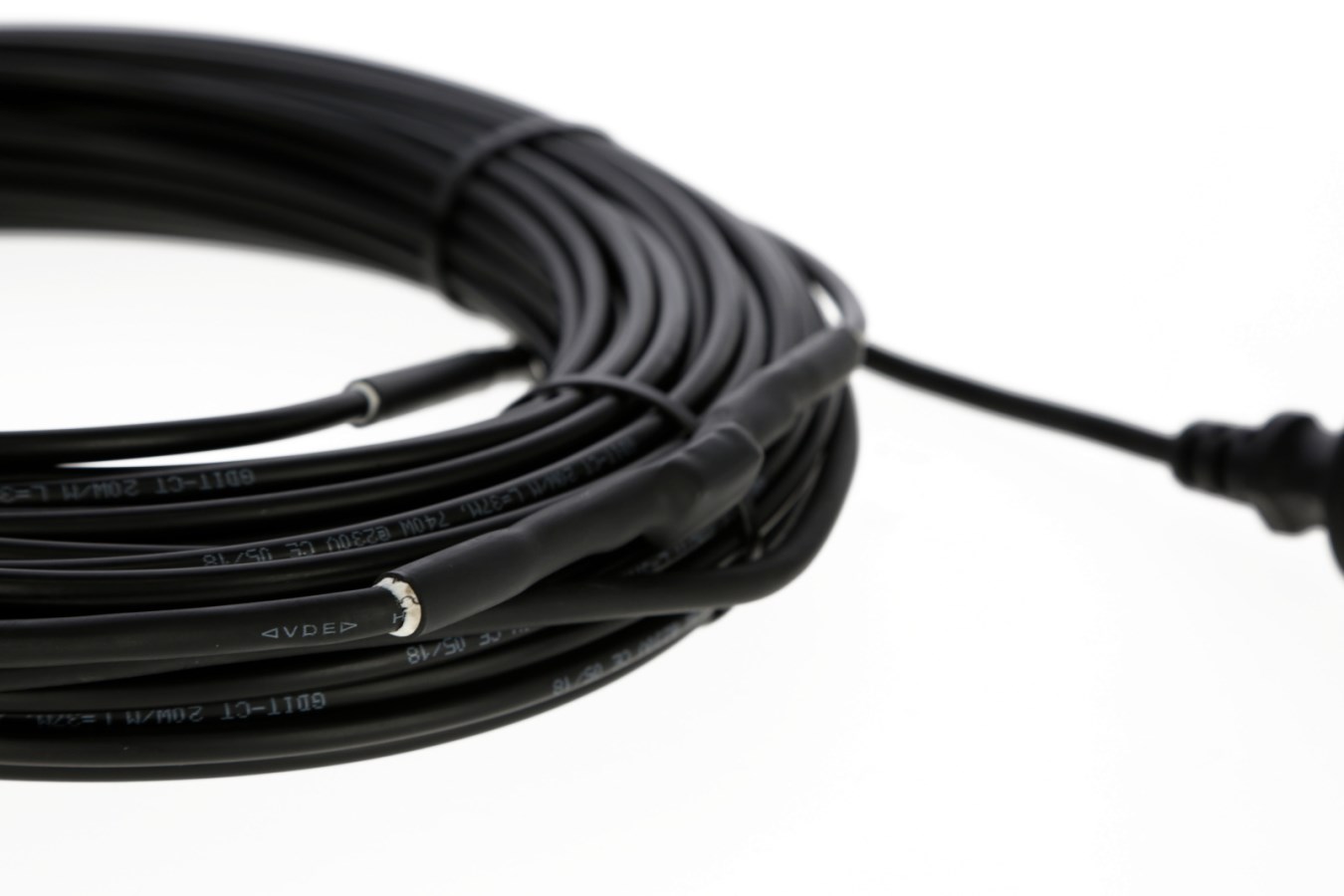

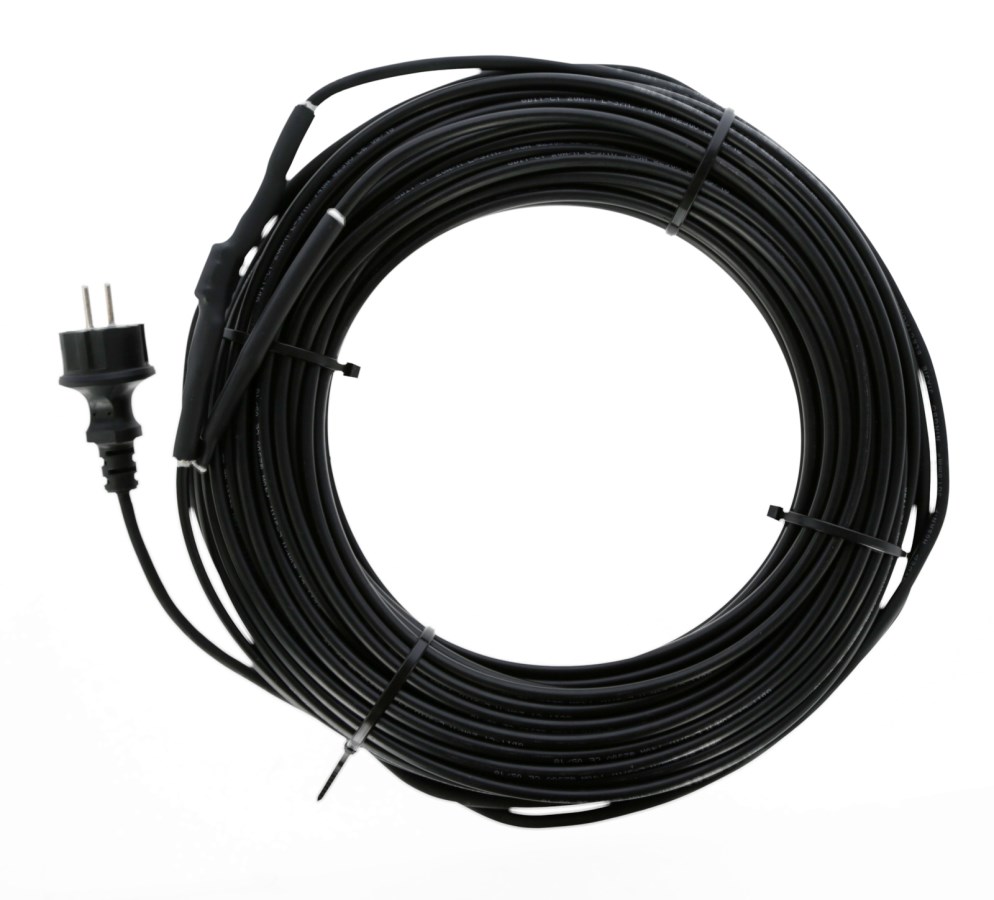

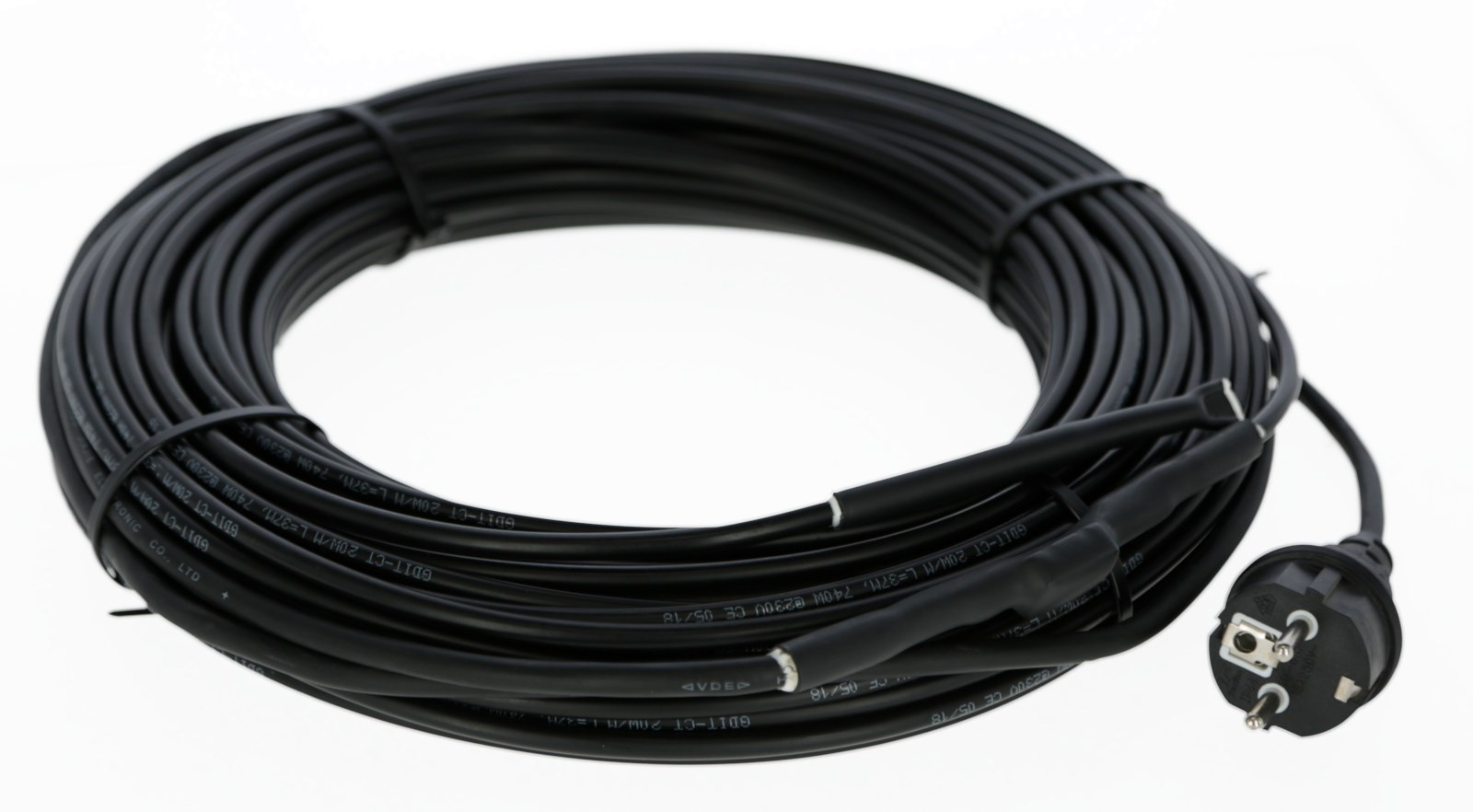

Frost Protection Heating Cable for Gutters and Pipes

The plug-in heating cable, suitable for gutters and pipes, meets the requirements of strength class M2 as per IEC60800:2009 to keep gutters and pipes safely above freezing.

The high heating power of 20 watts per metre means the heating cable keeps gutters, downspouts and piping frost-free even at very low temperatures.

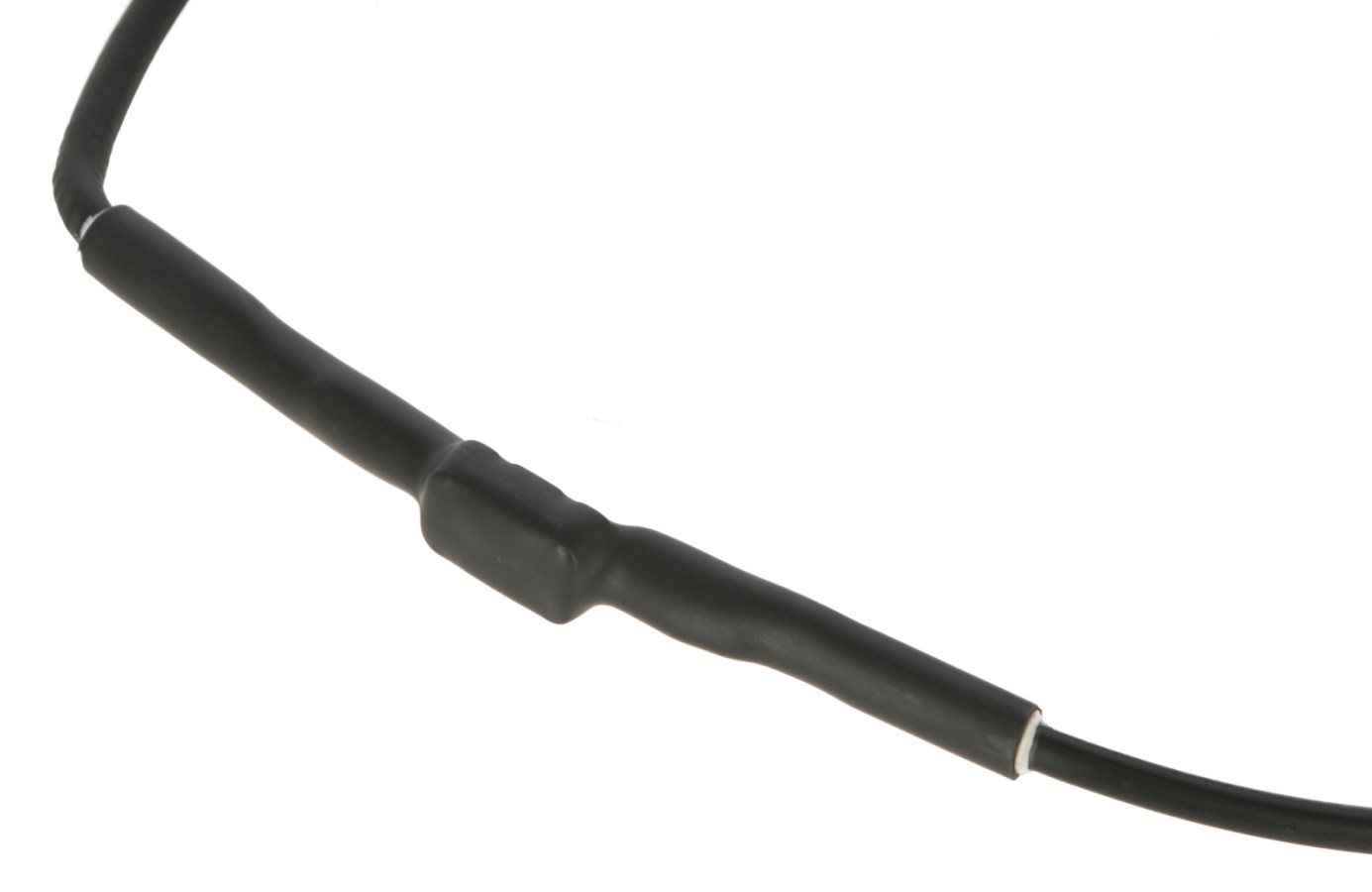

The integrated temperature switch reliably switches the heating cable on at a temperature of +3 °C and off again at +12 °C.

  • suitable for gutters: Strength class M2
  • ready-to-plug heating cable for easy installation
  • integrated thermostat for energy-saving use
  • suitable for metal water pipes

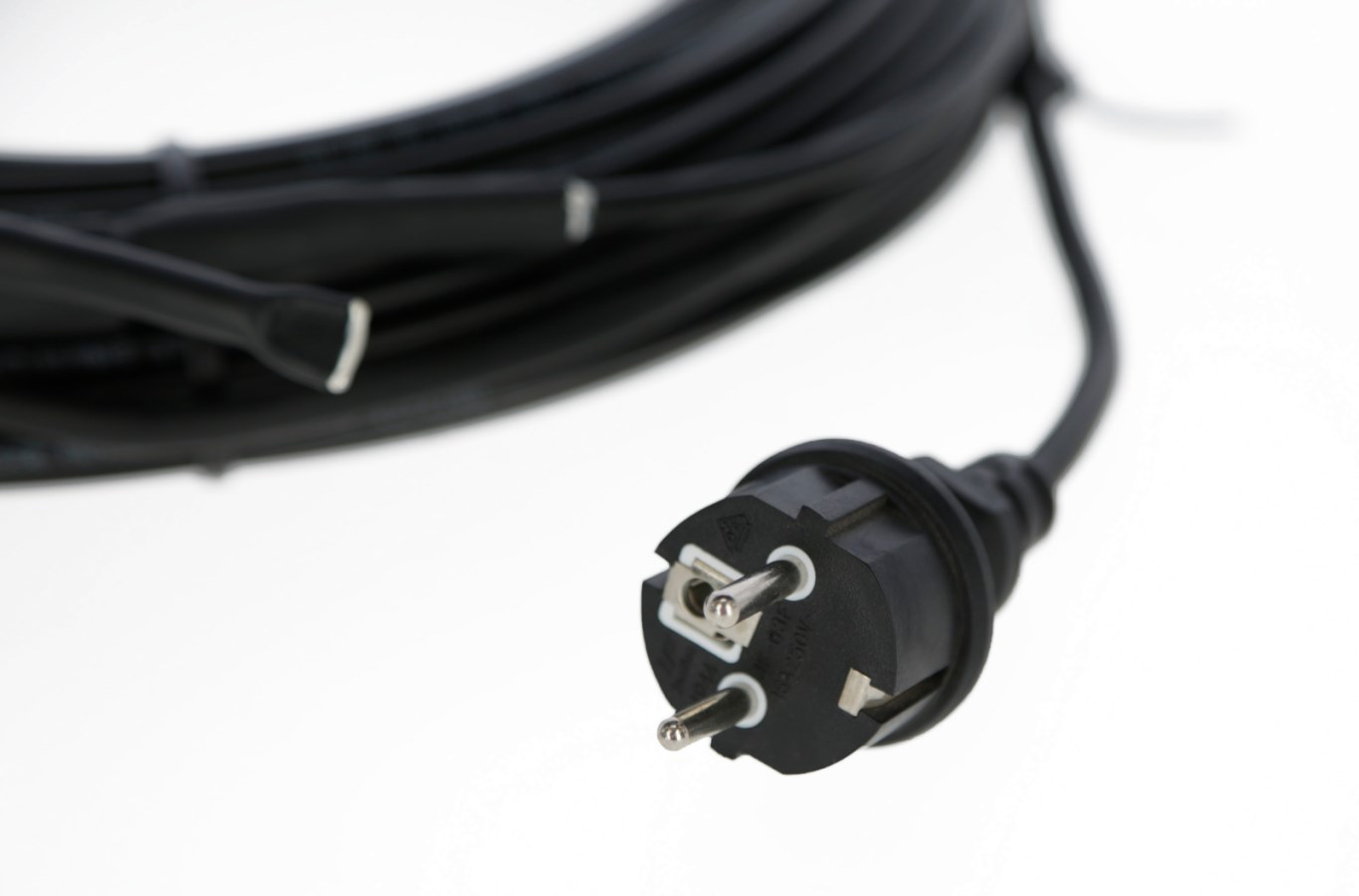

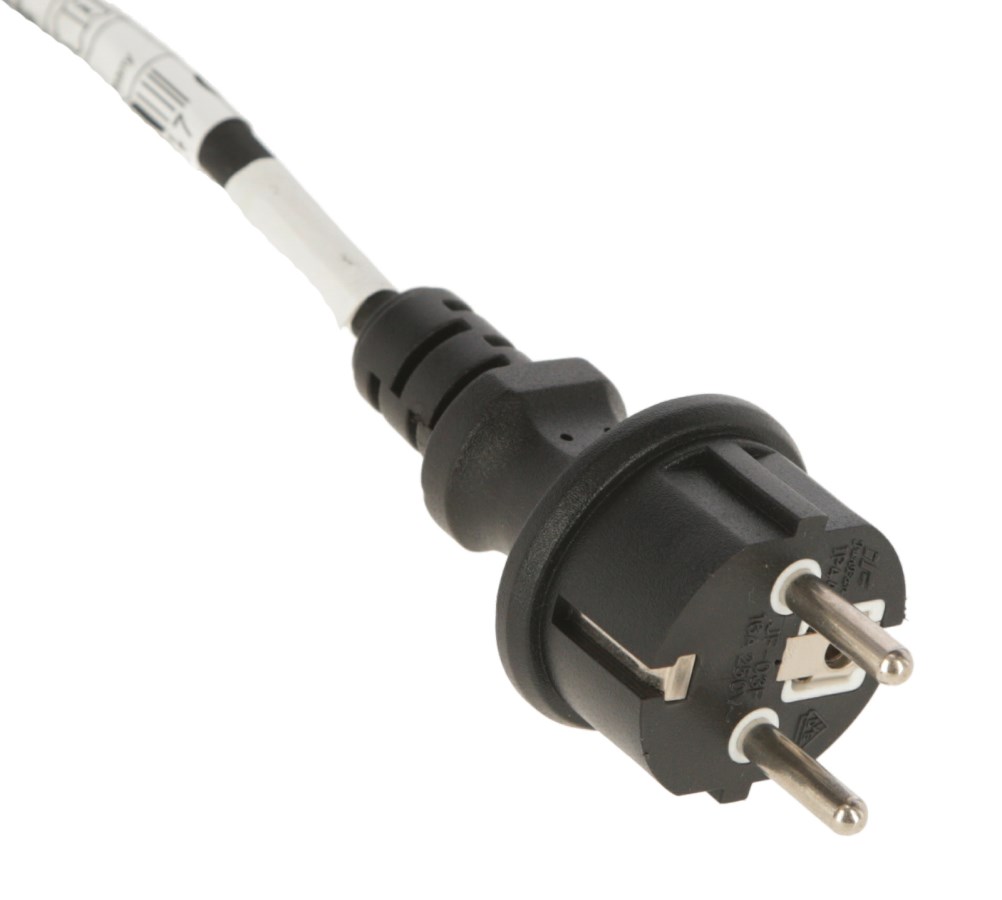

  • incl. safety plug for high level of safety
  • Connection cable length: 2 m
  • Voltage: 230 V
  • IPX7
  • Protection class: I
Items
Ref. no.Heating outputHeating cable lengthØPlug typePUPallet
296087100 W5 m6 mmSafety Plug E + F1/101/10100 PAL100 PAL
296088200 W10 m6 mmSafety Plug E + F1/101/10100 PAL100 PAL
296089300 W15 m6 mmSafety Plug E + F1/101/10100 PAL100 PAL
296090400 W20 m6 mmSafety Plug E + F1/101/10100 PAL100 PAL
296091500 W25 m6 mmSafety Plug E + F1/101/1080 PAL80 PAL
296092800 W40 m6 mmSafety Plug E + F1/101/1080 PAL80 PAL
2960931000 W50 m6 mmSafety Plug E + F1/101/1080 PAL80 PAL
Accessories
Ref. no.DescriptionMOQPieces / unitPU
296097Spacer for Heating Cable incl. cable tie1 pack5 / pack1/250
296098Kink protection for heating cables incl. cable tie  1/100
296099Personal safety switch  1

Note:

  • Please note that each heating cable connection must be fused via a separate residual current circuit breaker (E.g. item no. 296099, plug-in PRCD switch).
  • The heating cable must be protected against sharp edges, e.g. where the guttering meets the downpipe, using edge protection (item no. 296098).
  • The heating cable must not overlap, cross over or be in contact with itself or another heating cable at any point. To permanently prevent contact, we recommend the use of suitable spacers if necessary (item no. 296097).
  • For safety reasons, pipes and metal guttering, protective tubes and sheathing must be earthed before installation.
