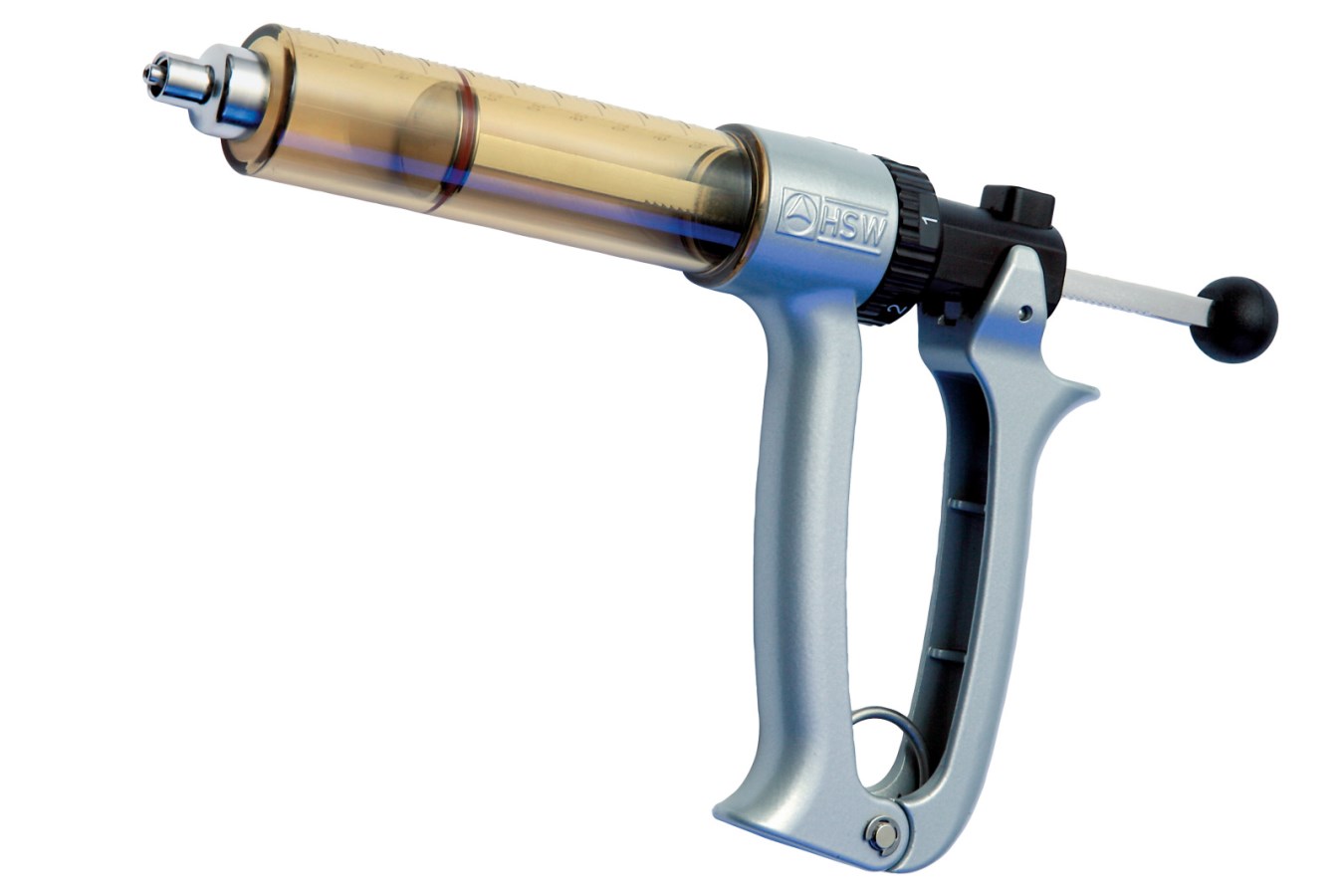

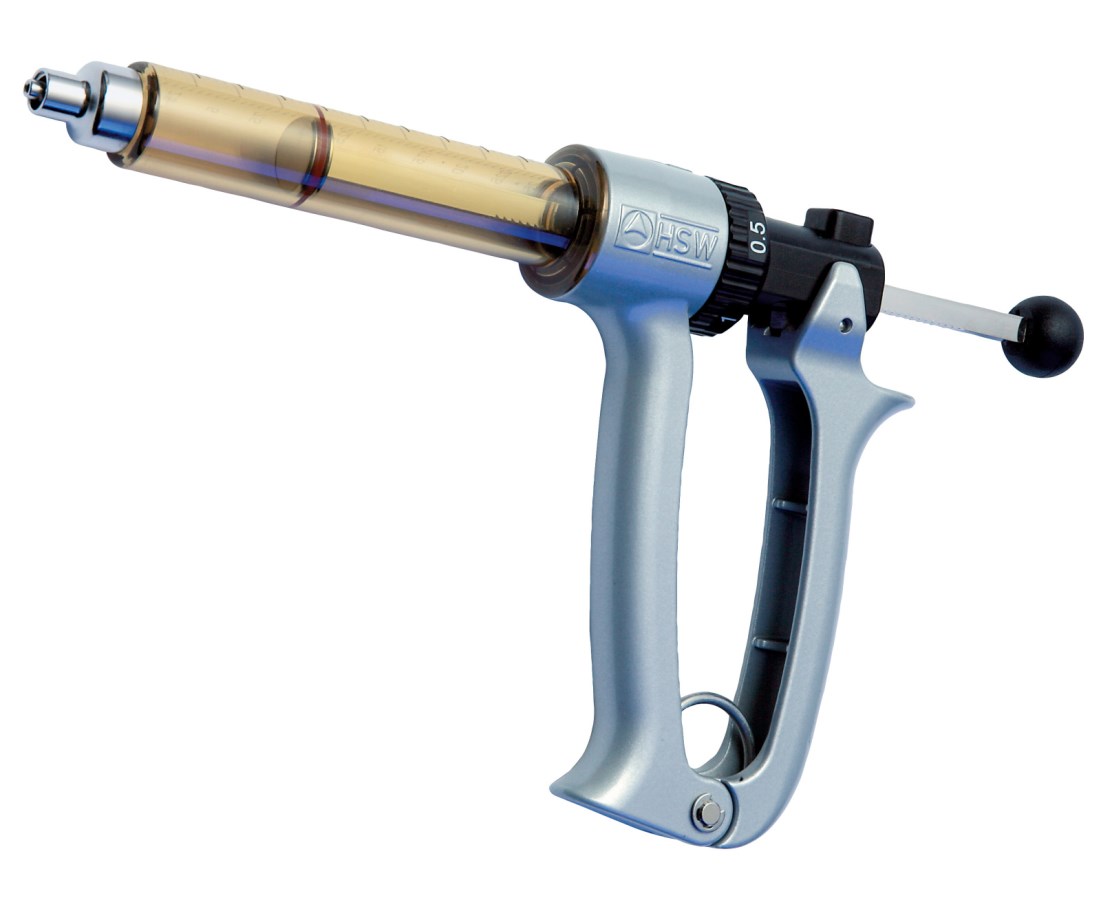

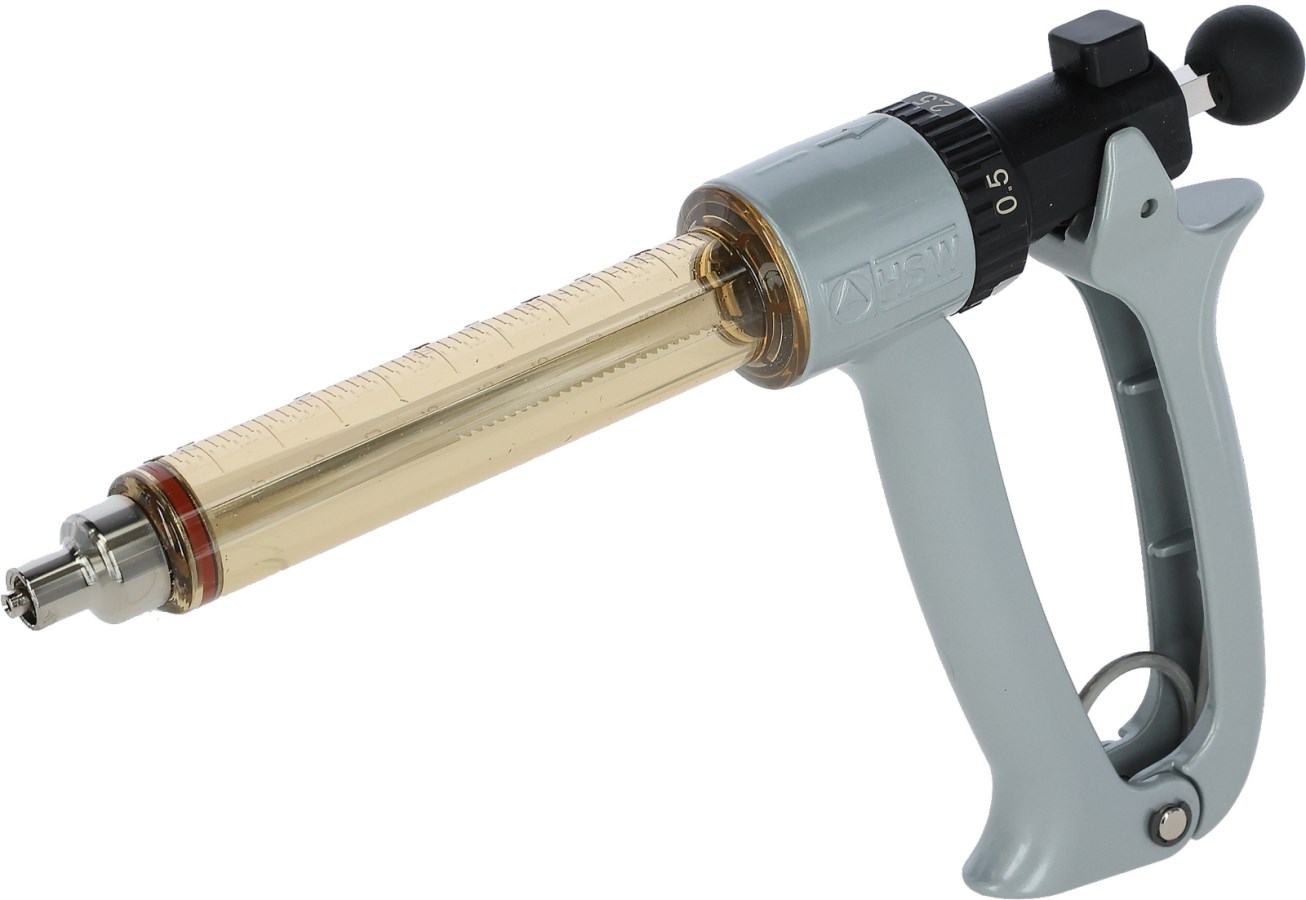

HSW MULTI-MATIC®

Dosing Syringe for Serial Vaccination Original Henke
innovative and ergonomic design
excellent handling through handles made of high-strength die-cast aluminium
high-strength plastic cylinder with metal cannula attachment, resistant to all known drugs
highest dosing precision with tolerance < 1 %

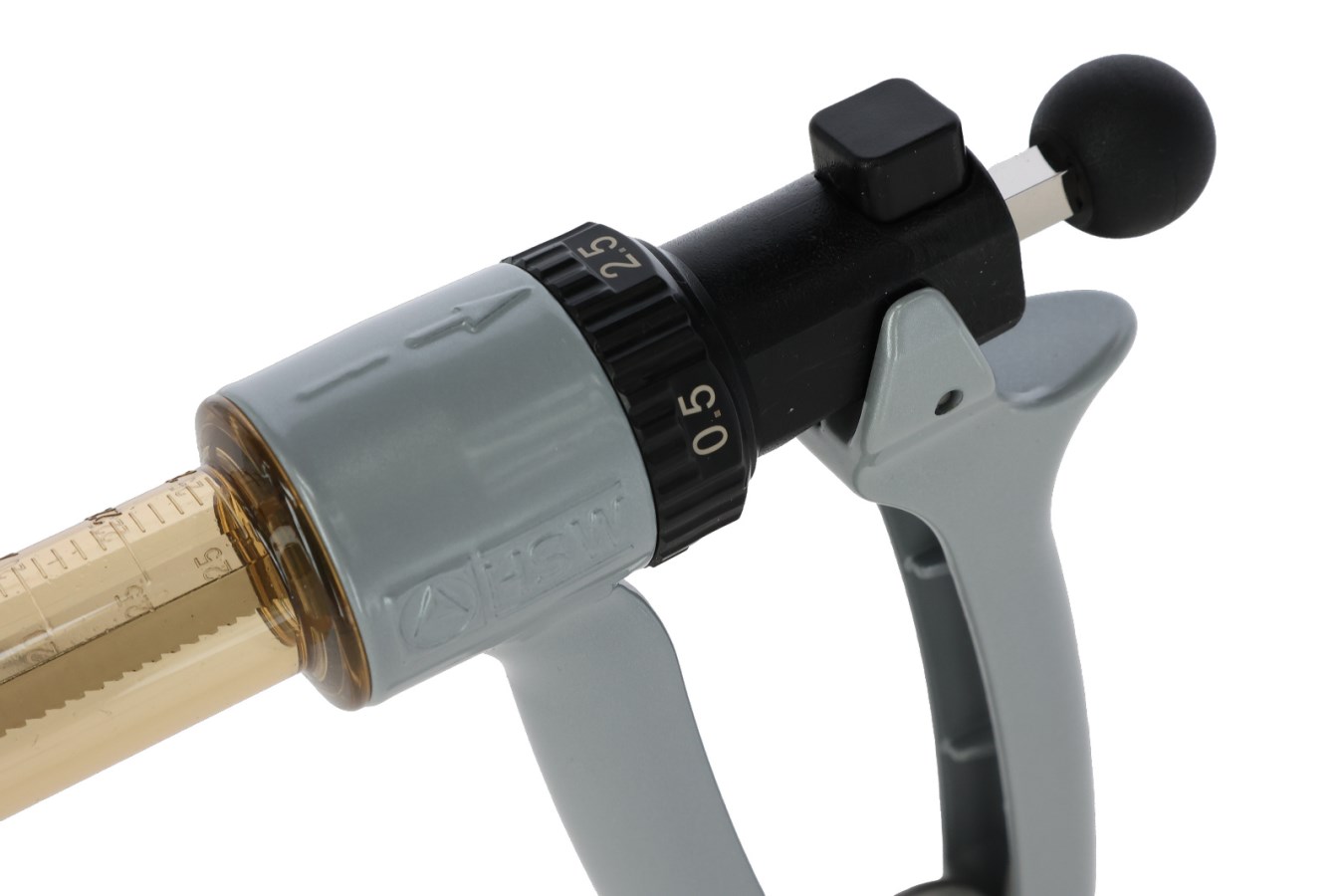

easy dosing using the rotary dispenser 0.5 - 2.5 ml (25 ml) or 1 - 5 ml (50 ml)
easy to service thanks to simple disassembly
biocompatible
cylinder – autoclaved (sterilisable at 134 °C)

Ref. no.	Cannula Attachment	Capacity	Dosing	PU
23101	Luer lock attachment	25 ml	0.5 ml - 2.5 ml	1/50
23102	Luer lock attachment	50 ml	1 ml - 5 ml	1/50
23103	Thread attachment	25 ml	0.5 ml - 2.5 ml	1/50
23104	Thread attachment	50 ml	1 ml - 5 ml	1/50

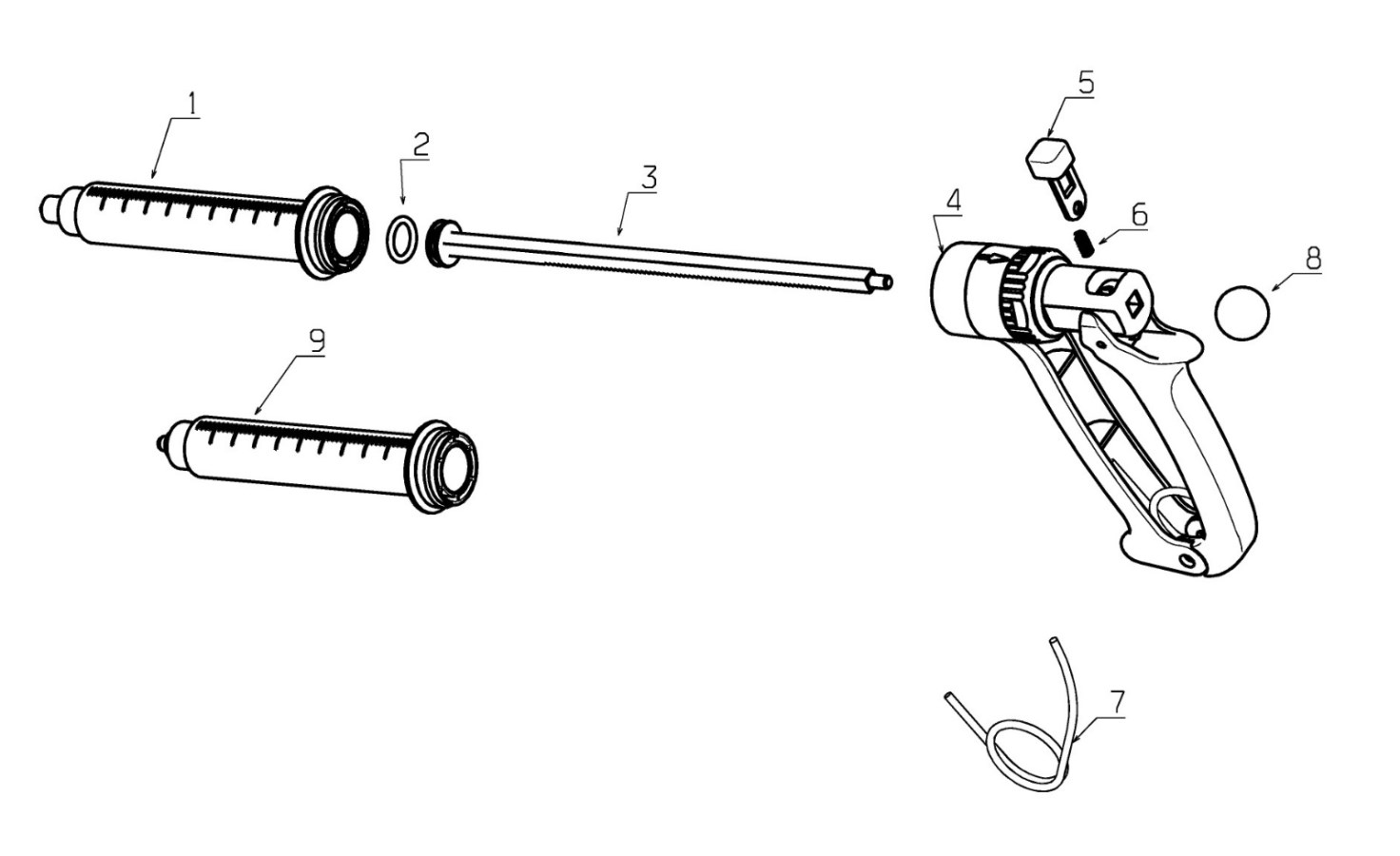

Item. No.	Description	23101	23102	23103	23104
23161	Flexible extension, 29 cm,	x	x
23162	Flexible extension, 29 cm,			x	x
31156	steel ball 10ml,30ml,50ml	x	x	x	x
31234	front part LL 11,4cm	x	x
31370	barrel 25ml LL f. Multi-Mat.	x
31371	barrel 50ml LL f. Multi-Mat.		x
31372	barrel 25ml thread			x
31373	barrel 50ml thread for				x
31374	piston rod 25ml for Multi-Mat.	x		x
31375	piston rod 50ml for Multi-Mat.		x		x
31376	handle silver 25ml f. Multi-M.	x		x
31377	handle silver 50ml f. Multi-M.		x		x
31378	hook complete 25/50ml	x	x	x	x
31379	spring for hook 25/50ml	x	x	x	x
31380	handle spring 25/50ml	x	x	x	x
31381	knob black 25/50ml	x	x	x	x
31382	washer 25ml for MultiMatic	x		x
31383	washer 50ml for MultiMatic		x		x

Ersatzteile
