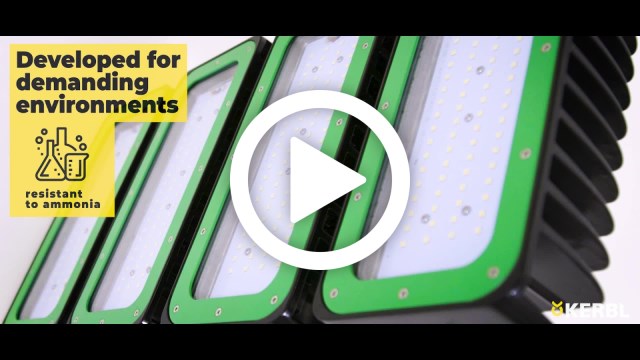

LED Indoor Spotlight

The high-bay LED lamp, with top-quality materials, electronics and workmanship and specially developed for agriculture and demanding conditions, provides additional benefits in terms of safety, resilience and working life.

resistant to ammonia (DLG-tested)
ideal for high-ceiling structures
high-quality SMD chips from Philips
an insulated LED driver with integrated overload, short-circuit, and no-load protection provides additional safety for the LEDs, and extends their working life
excellent light yield
high colour temperature for fatigue-free visibility
direct or suspended ceiling installation
special heat sink shape for optimised heat dissipation
protected against powerful water jets and dust-proof (IP65 protection class)
flicker-free, so also suitable for animals with high visual acuity
cover made from hardened glass
with D marking according to DIN EN 60598-2-24, therefore suitable for areas at risk of fires due to combustible dusts or fibres (hay storage, feed, litter, etc.)

suitable for outdoor use
TÜV-GS approved
5-year warranty

Items

Ref. no.	Output	Ø	Dimming function	Luminous flux	Colour temperature	PU		Pallet
345805	100 W	280 mm	cannot be dimmed	13200 lm	5700 K	1	1	24 PAL	24 PAL
345815	150 W	320 mm	cannot be dimmed	19800 lm	5700 K	1	1	21 PAL	21 PAL
345825	200 W	365 mm	cannot be dimmed	26400 lm	5700 K	1	1	28 PAL	28 PAL
345835	240 W	400 mm	cannot be dimmed	31680 lm	5700 K	1	1	28 PAL	28 PAL
345810	150 W	320 mm	dimmable	19800 lm	5700 K	1	1	24 PAL	24 PAL
345830	240 W	400 mm	dimmable	31680 lm	5700 K	1	1	24 PAL	24 PAL

Accessories

Ref. no.	Description	Colour	Material	PU
345802	Mounting bracket for ceiling and wall mounting LED Indoor Spotlight	black	metal	1/20

Technical data	Voltage	Mains frequency	Luminous efficacy	Light angle (half intensity angle)	Chip service life (L70)	LED type	Dimming function	Material	Operating ambient temperature	Colour rendering (CRI)	Protection class
345805	100 V AC - 240 V AC	50 Hz - 60 Hz	132 lm/W	110 °	> 100000 h	SMD	1…10 V, 10 V PWM, 0 - 100 kΩ resistance	Die-cast aluminium with anti-corrosion coating	-40 °C - 60 °C	Ra > 80	IP65
345815	100 V AC - 240 V AC	50 Hz - 60 Hz	132 lm/W	110 °	> 100000 h	SMD	1…10 V, 10 V PWM, 0 - 100 kΩ resistance	Die-cast aluminium with anti-corrosion coating	-40 °C - 60 °C	Ra > 80	IP65
345825	100 V AC - 240 V AC	50 Hz - 60 Hz	132 lm/W	110 °	> 100000 h	SMD	1…10 V, 10 V PWM, 0 - 100 kΩ resistance	Die-cast aluminium with anti-corrosion coating	-40 °C - 60 °C	Ra > 80	IP65
345835	100 V AC - 240 V AC	50 Hz - 60 Hz	132 lm/W	110 °	> 100000 h	SMD	1…10 V, 10 V PWM, 0 - 100 kΩ resistance	Die-cast aluminium with anti-corrosion coating	-40 °C - 60 °C	Ra > 80	IP65
345810	100 V AC - 240 V AC	50 Hz - 60 Hz	132 lm/W	110 °	> 100000 h		1…10 V, 10 V PWM, 0 - 100 kΩ resistance	Die-cast aluminium with anti-corrosion coating	-40 °C - 60 °C	Ra > 80	IP65
345830	100 V AC - 240 V AC	50 Hz - 60 Hz	132 lm/W	110 °	> 100000 h		1…10 V, 10 V PWM, 0 - 100 kΩ resistance	Die-cast aluminium with anti-corrosion coating	-40 °C - 60 °C	Ra > 80	IP65

Preview image	Item. No.	Description	345805	345815	345825	345835	345810	345830
	345802	Adapter plate & bracket f. LED	x	x	x	x	x	x
