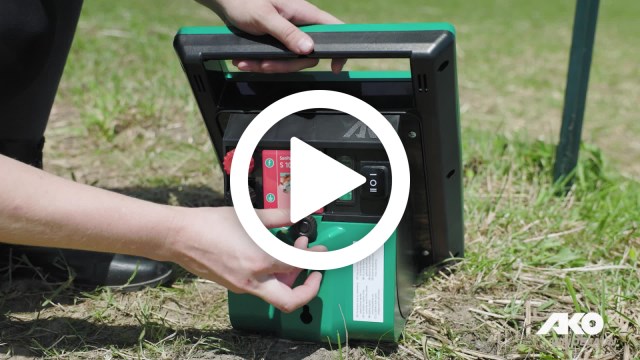

Sun Power S 500

function indicator LED (green) plus solar operation LED (blue) plus battery warning LED (red)

Important: If ground is dry, several additional ground rods must be used.

Ref. no.	PU		Pallet
372949	1	1	50 PAL	50 PAL

optimised for permanent, maintenance-free operation right through the main pasture season
with High/Low/Off switch
power saving switch for when battery voltage fails
integrated lightning protection
intelligent, modern battery management with deep discharge protection – device functions even during extended periods of bad weather
excellent level of efficiency – therefore a longer battery life
very robust, weather-resistant, water-tight casing with carrying handle
fast and easy to install
channel integrated into the housing for post mounting
microprocessor controlled
very bright, clearly visible LED light
corresponds to applicable EU safety standards

Model
S 500
Ref. no.	372949
Stored Energy	0.75 J
	0.75 J
max. discharge energy	0.55 J
	0.55 J
max. voltage	10800 V
	10800 V
Voltage in Open Circuit	10200 V
	10200 V
Voltage at 500 Ohms	4300 V
	4300 V
theoretical fence length as per VDE	18 km
	18 km
max. fence length without vegetation	6 km
	6 km
max. fence length with medium vegetation	1.7 km
	1.7 km
max. fence length with high vegetation	0.2 km
	0.2 km
Qty 1 m earth posts	1
	1
Power Consumption	31 mA - 43 mA
	31 mA - 43 mA

Model	S 500
Ref. no.	372949
Stored Energy	0.75 J
	0.75 J
max. discharge energy	0.55 J
	0.55 J
max. voltage	10800 V
	10800 V
Voltage in Open Circuit	10200 V
	10200 V
Voltage at 500 Ohms	4300 V
	4300 V
theoretical fence length as per VDE	18 km
	18 km
max. fence length without vegetation	6 km
	6 km
max. fence length with medium vegetation	1.7 km
	1.7 km
max. fence length with high vegetation	0.2 km
	0.2 km
Qty 1 m earth posts	1
	1
Power Consumption	31 mA - 43 mA
	31 mA - 43 mA

1 x High-Power Compact Solar Device Sun Power S 500 (fully assembled) *

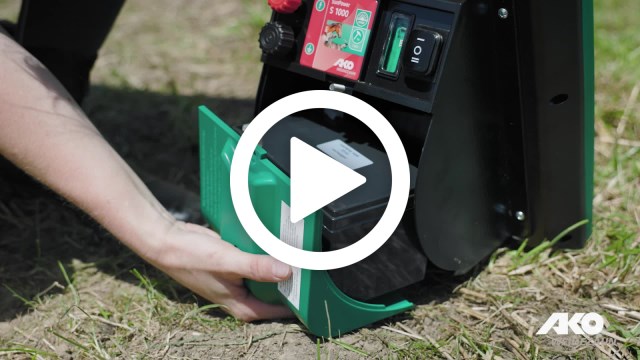

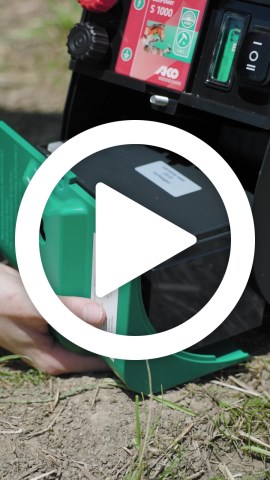

1 x AGM battery, 12 Volt, 7 Ah (441130)*
1 x permanently mounted, crystalline solar module, 12 Volt, 8 Watt *
1 x 230 volt battery mains charger (371032)
1 x fence connector cable
1 x ground connector cable
1 x two-part ground/installation spear (442385)
1 x warning sign
* Warranty: solar fence device (4 year warranty), solar module (5 year performance warranty), 12 volt battery (6 month warranty)

Preview image	Item. No.	Description	372949
	441130	AGM battery, 12V 7Ah	x
